05Assembly_tutoria
overview

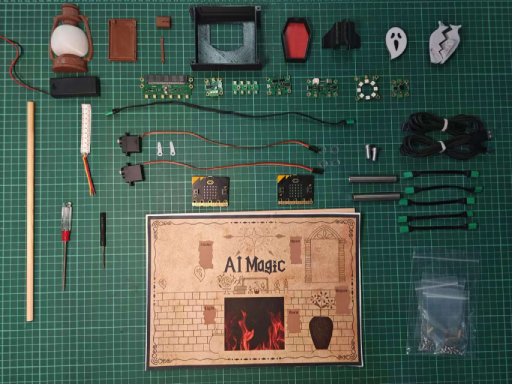

Parts Overview

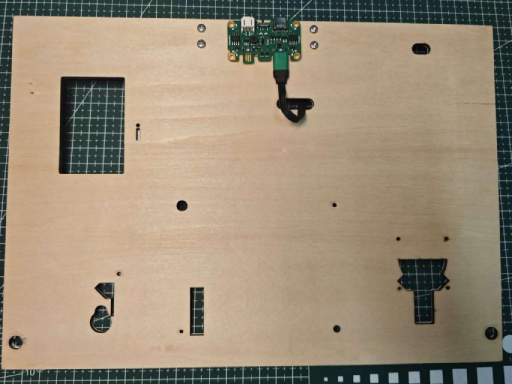

Bottom plate installation

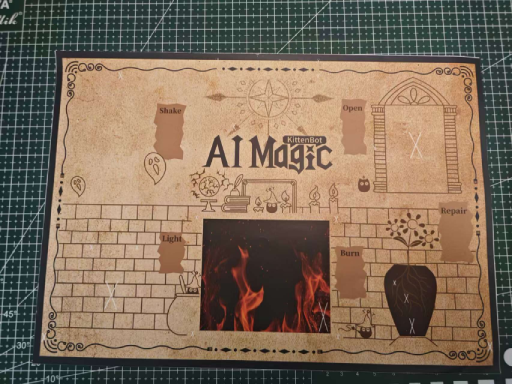

Stickers

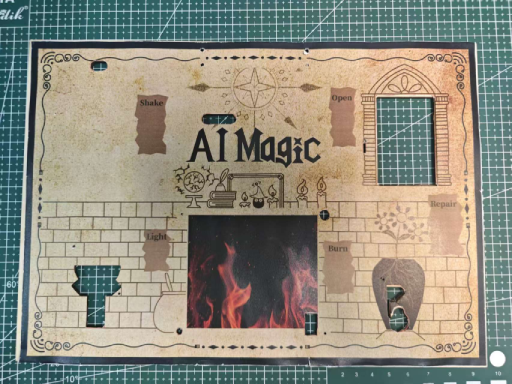

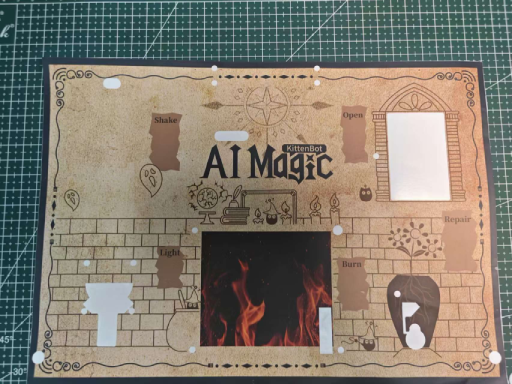

Remove the unnecessary parts from the sticker.
Stick the torn stickers onto the wooden board.

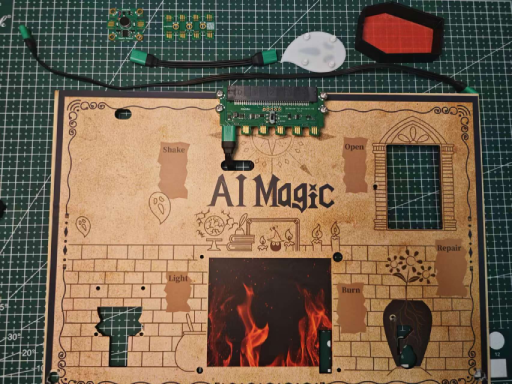

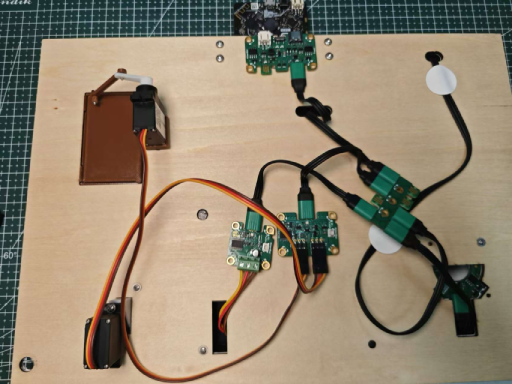

Functional module installation
Installation of Jacdapyor module
Parts preparation
Jacdapyor
Installation steps

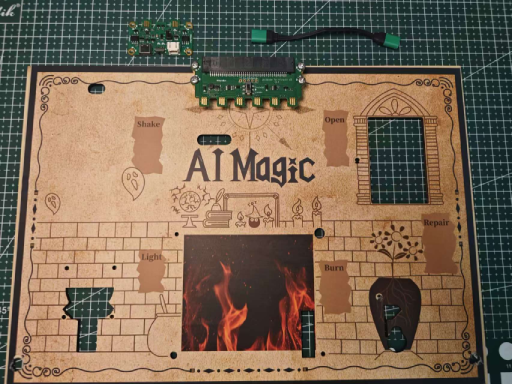

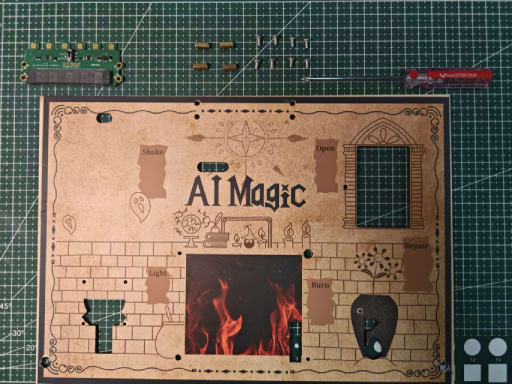

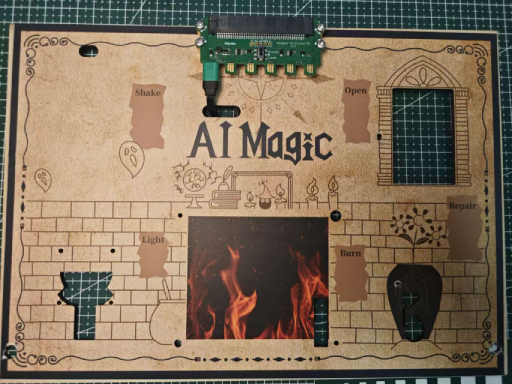

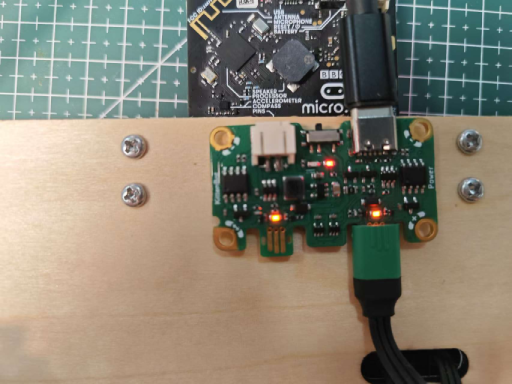

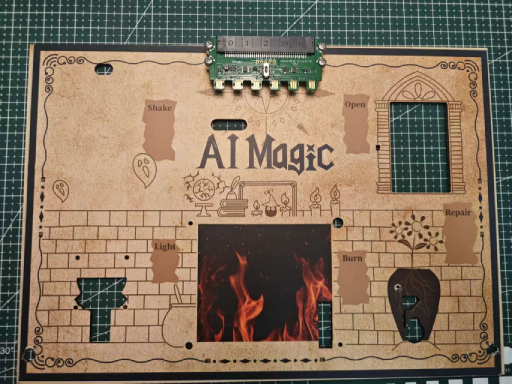

Fix Jacdapyor with screws and copper pillars.

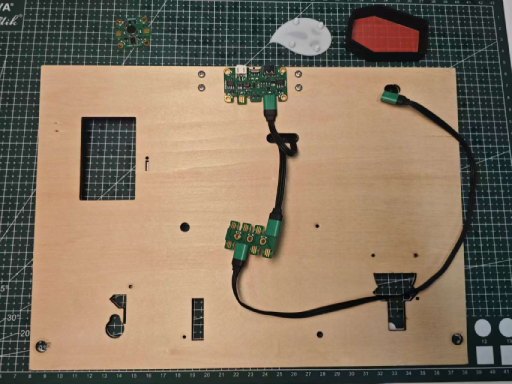

Power motherboard installation

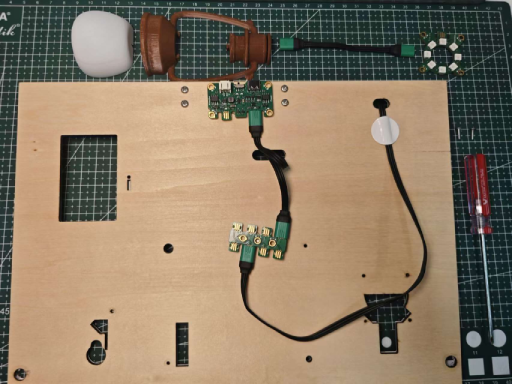

Parts preparation
Power module
Installation steps
Insert the power cord into the first pin on the left side of the base.

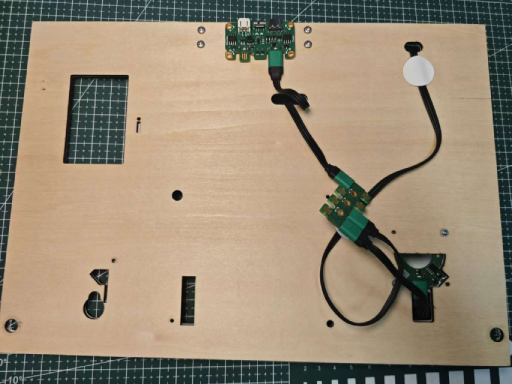

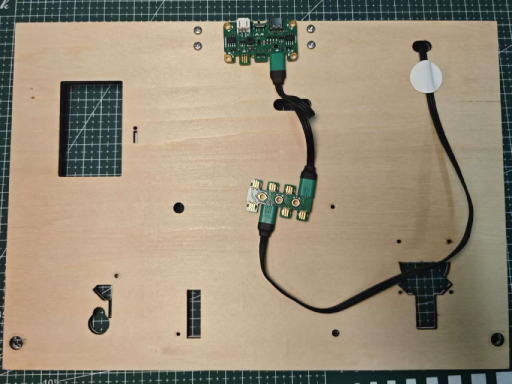

Use glue to fix the power onto the wooden board and connect it to Jacdapyor.

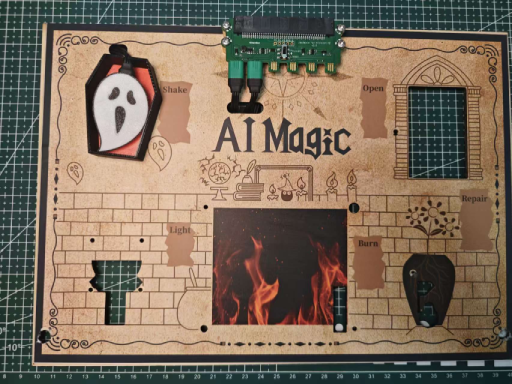

Haptic module installation
Parts preparation

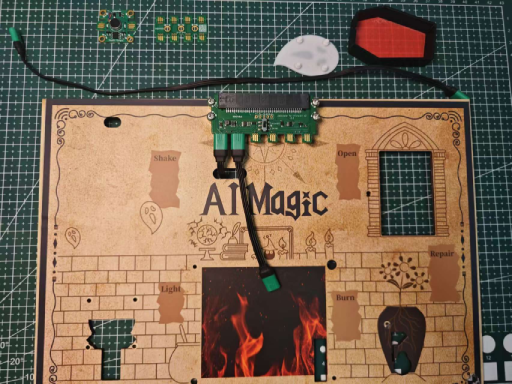

Hub module, Haptic module
Installation steps

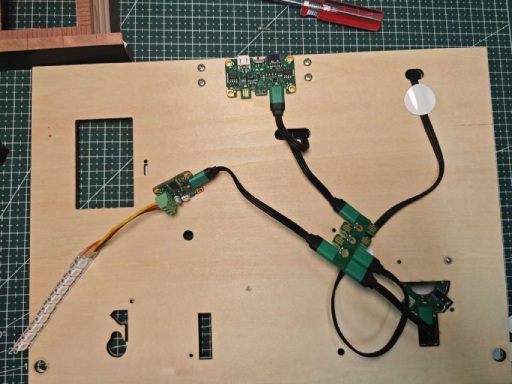

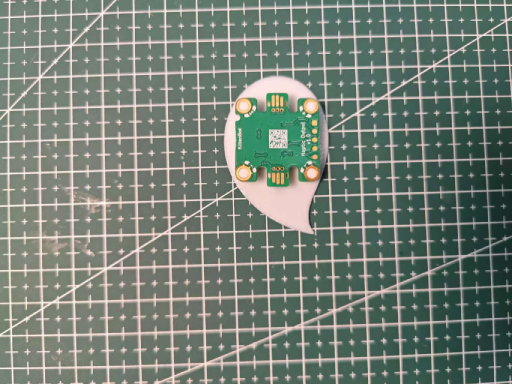

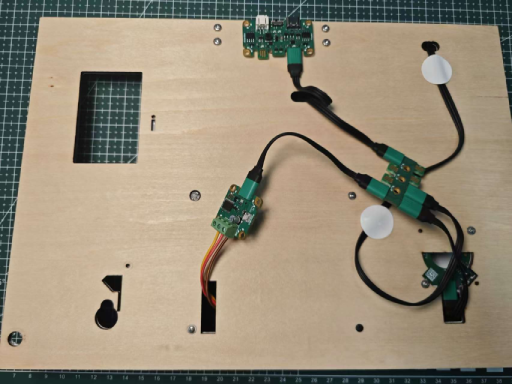

wire connection

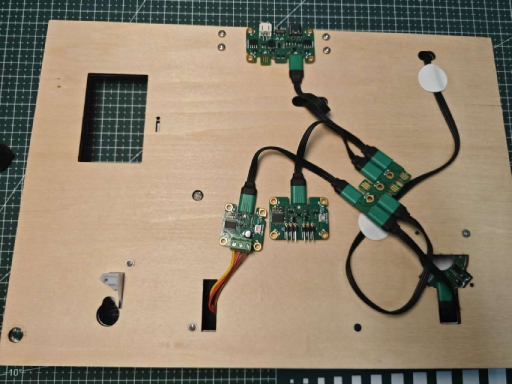

Use glue to fix the wire.

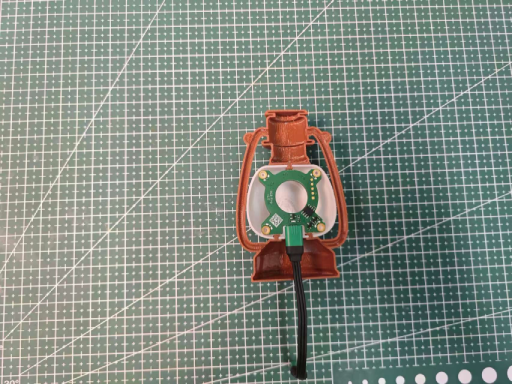

Ghosts should not be attached to oil lamps. A little distance above the oil lamp will improve the vibration effect.
RGB Ring module

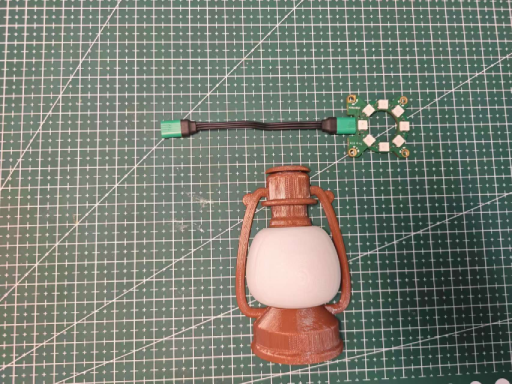

Parts preparation
RGB Ring module
Installation steps
Connect the wires and then use screws to secure the 3D printed part to the wooden board.
RGB Strip Module

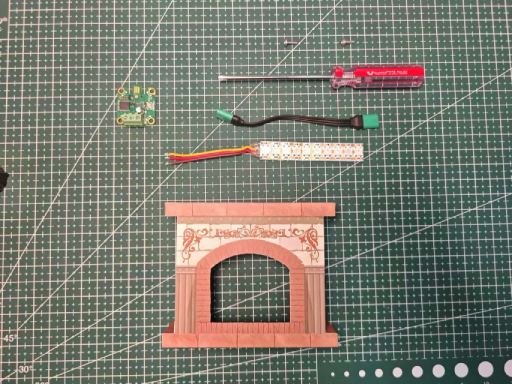

Parts preparation
RGB Strip Module
Installation steps
wiring method
Use screws to secure the 3D printed fireplace piece to the wooden board.

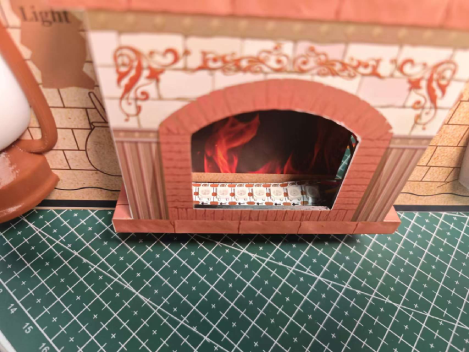

Paste the RGB light strip onto the fireplace.
Front schematic diagram

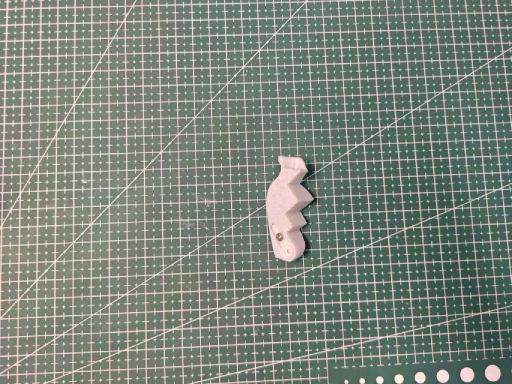

Vase installation

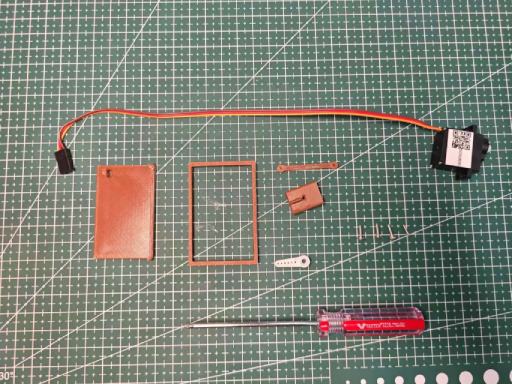

Parts preparation

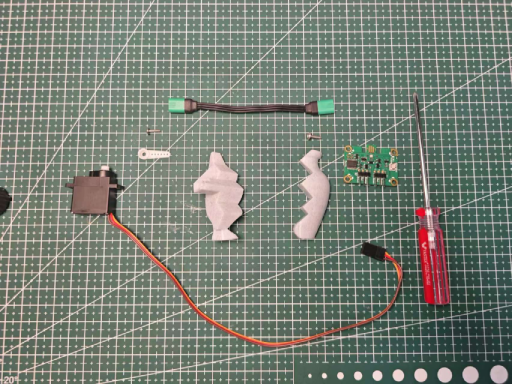

Servo module
Installation steps

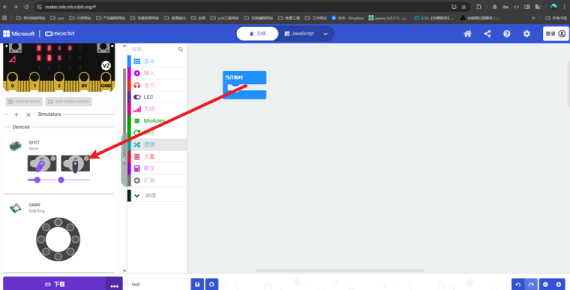

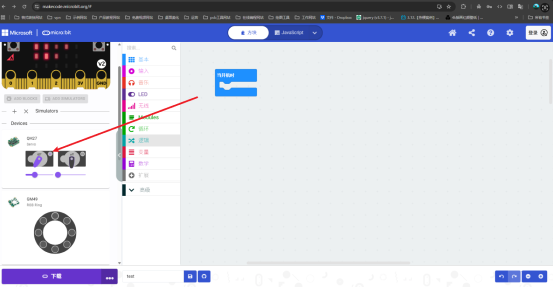

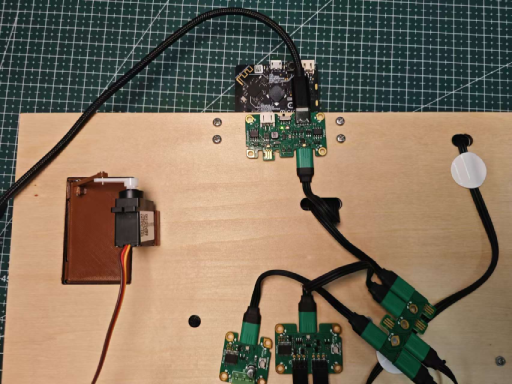

Click the power button to initialize the servo angle and control the angle of vase breakage and repair.
:::warning
Before initializing the servo, it is necessary to supply power to the power module
Turn on the power button
:::
Installation of magic door module
Parts preparation
Installation steps
dangerThe steps for initializing the servo angle of the magic door are the same as those for the vase module. Control the angle of opening and closing the door.
Use screws to fix the servo and 3D printed parts

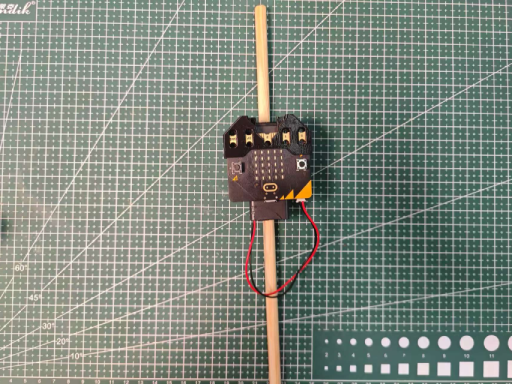

Magic wand installation

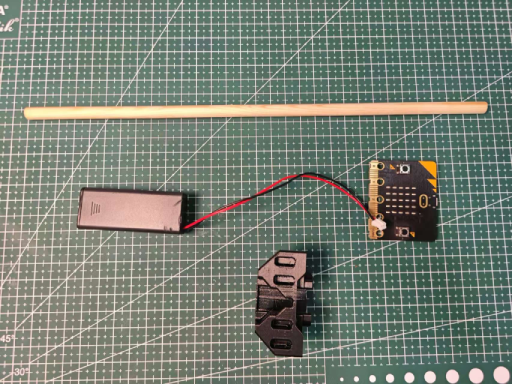

Parts preparation
Installation steps

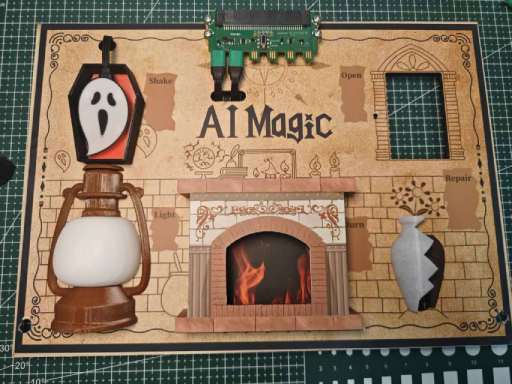

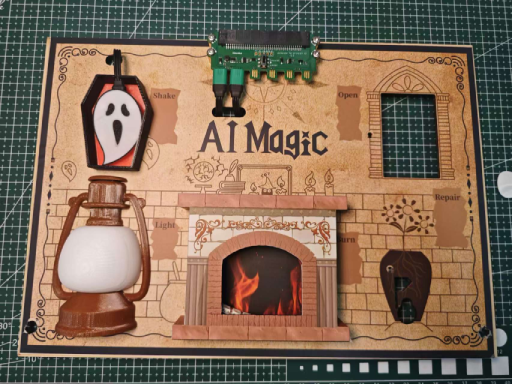

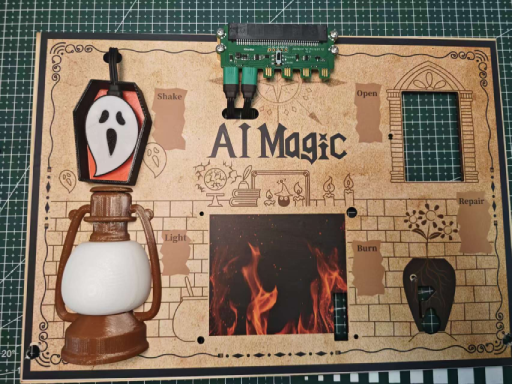

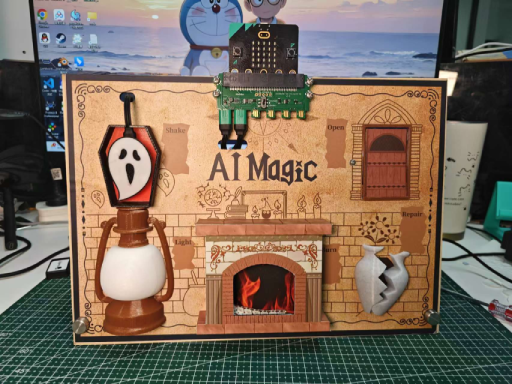

Finished product display image
